Details and Section Views

Details and section views are important construction drawings that show specific parts of a building more clearly. Detail drawings focus on small areas, such as wall connections, doors, windows, stairs, foundations, roofs, or joints, and explain how they should be built.

Section views show a cut-through view of a building or structure, helping people understand the inside layers, heights, materials, and connections between different parts. These drawings are useful for builders, engineers, and architects because they provide accurate information, reduce construction mistakes, and make sure the project is built safely and correctly.

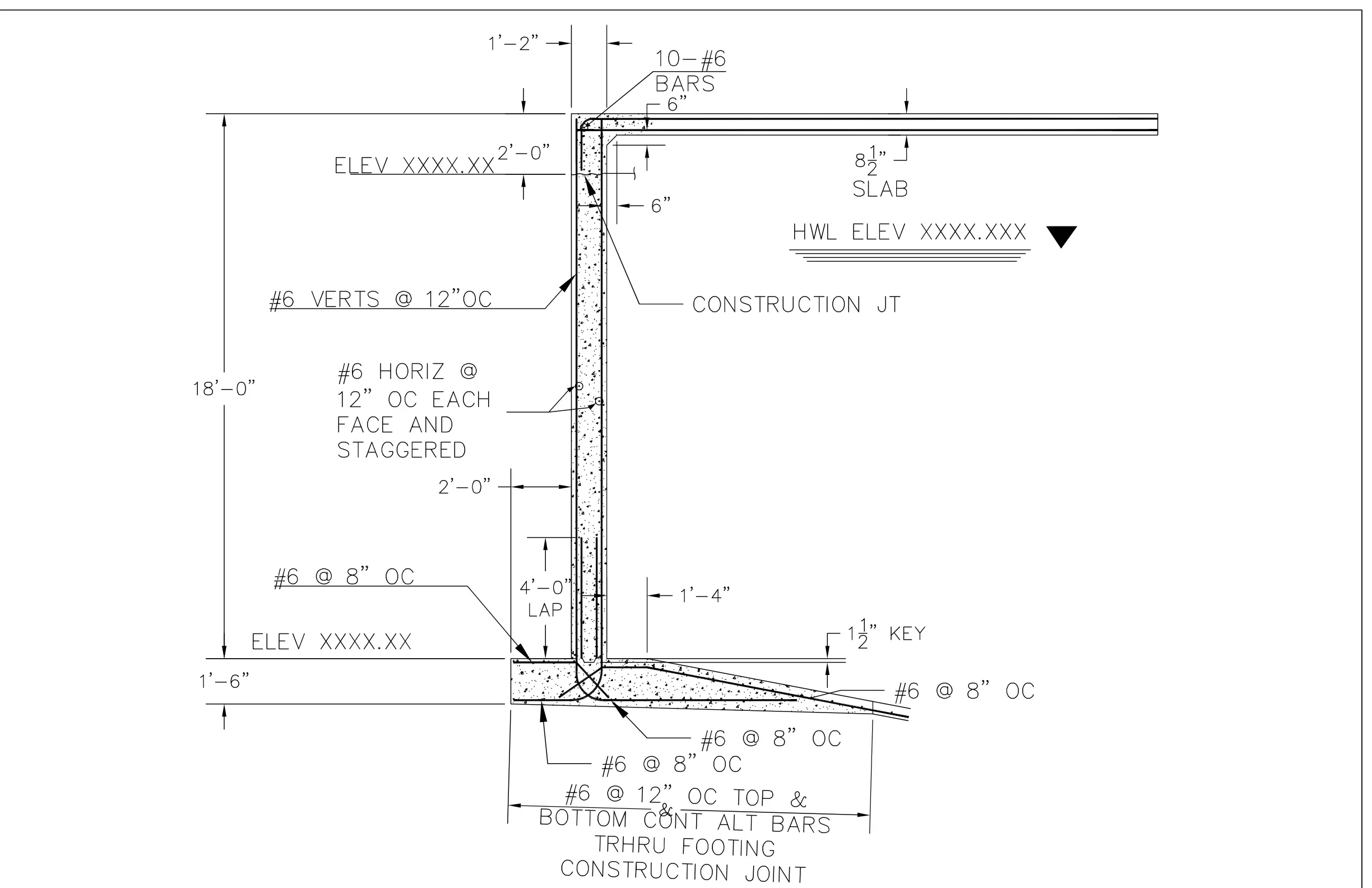

This drawing presents a structural concrete section detail showing the connection between a vertical concrete wall, base footing, and adjacent slab. The detail includes dimensions, reinforcement placement, construction joints, elevation references, and keyway information required for concrete construction and inspection.

Concrete Wall Section

The central part of the drawing shows a vertical reinforced concrete wall. The wall extends approximately 18'-0" in height and is detailed with internal reinforcing steel. The section helps show the wall thickness, vertical face, and relationship between the wall, footing, and upper slab.

Wall Reinforcement

The wall includes #6 vertical reinforcing bars at 12 inches on center. Horizontal reinforcement is also shown as #6 bars at 12 inches on center at each face, staggered through the wall. These reinforcement notes indicate the required steel placement used to strengthen the concrete wall against structural loads.

Footing Detail

At the base of the wall, a concrete footing is shown supporting the vertical wall. The footing includes multiple reinforcing bar notes, including #6 bars at 8 inches on center and #6 bars at 12 inches on center at the top and bottom through the footing. This detail defines how the footing is reinforced to distribute loads into the supporting ground.

Slab Connection

The upper right portion of the drawing shows an adjacent concrete slab connected near the top of the wall. The slab thickness is labeled as 8 1/2 inches, and reinforcement is indicated with 10-#6 bars. This portion of the detail helps explain how the slab bears on or connects to the concrete wall.

Construction Joint

A construction joint is labeled near the wall and slab connection, and another joint note appears near the footing area. These joints identify planned stopping or transition points in the concrete placement process and help control how separate concrete pours connect.

Keyway Detail

Near the base of the wall, a 1 1/2-inch key is shown. The keyway helps lock the wall and footing together, improving shear resistance and alignment between concrete pours.

Lap Splice Information

The drawing identifies a 4'-0" lap for reinforcing steel. This indicates the required overlap length where reinforcing bars are spliced together to maintain continuous structural strength.

Dimensions and Offsets

Several dimensions are provided throughout the detail, including 1'-2", 2'-0", 1'-4", 1'-6", and 6" offsets. These dimensions define the placement of wall faces, reinforcing bars, slab bearing, footing thickness, and construction joint locations.

Elevation References

The detail includes placeholder elevation labels such as ELEV XXXX.XX and HWL ELEV XXXX.XXX. These references are intended to be filled with project-specific elevations, including wall/footing elevations and high-water-level information.

High Water Level Marker

The right side of the detail includes a HWL elevation label with a marker symbol. This indicates a design water level reference, which may be important for hydraulic, retaining wall, or flood-related structural design.

Overall Purpose

Overall, this drawing communicates the structural requirements for a reinforced concrete wall, footing, and slab connection. It provides the reinforcement layout, concrete joint locations, dimensions, keyway information, and elevation references needed for construction, engineering review, and field inspection.
