On day one, a drafting partner opens your files and finds out how much of your standard is written down. Usually it is less than you think.
Most of it lives in a template, a few old projects and the head of your best project architect. That is fine while everyone is down the hall. It stops working the moment someone outside your office has to draw like you.
The short answer: a CAD standards handoff has six parts, sent together. Send your standards (title block, layers or Revit template, naming), the current files and sheet list, consultant backgrounds with coordinates, jurisdiction notes, numbered markups, and the people and rules for questions and review. And list what you are not sending.
This page is for project architects who are about to start work with an outside drafting partner and want the first set to come back in their standard. It includes a checklist you can copy, and a printable version to download.
What is a drawing-standards handoff, and why does week one decide the result?
It is the pack of files and instructions that lets someone else draw in your standard without guessing. Everything a partner has to guess about in week one becomes a correction in week three.
That is the pattern AEC Associates, a drafting vendor, describes when outsourced CAD work fails: standards assumed rather than agreed, revisions handled informally, and quality checks only at the end (The AEC Associates). A written handoff addresses the first of those directly.
The next four sections cover what to send, in the order a partner will need it. The outsourcing guide has the short version. This is the long one.
What CAD standards should you send?
If you work in AutoCAD, send these. Where you have a written standard, send it. Where you do not, send a finished sheet that shows the result.
| Item | What to send | Note |
|---|---|---|
| Drawing set organization | Sheet numbering and order; discipline prefixes | The US National CAD Standard’s Uniform Drawing System covers set and sheet organization |
| Sheet format | Title block and border files, sheet sizes, north arrow and scale conventions | Send the actual files, not a screenshot |

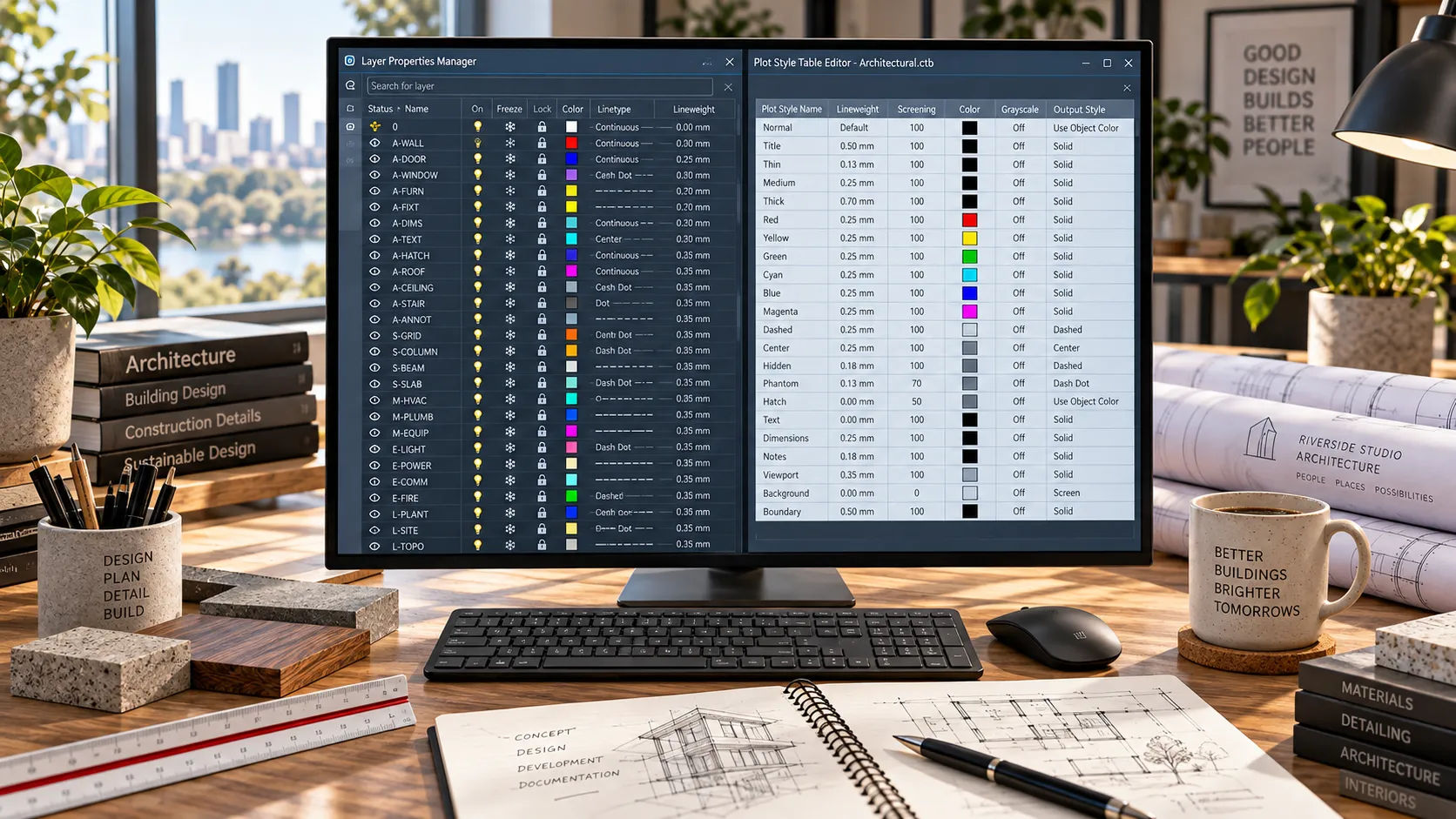

| Layers | Your layer list, or the name of the standard you follow | The NCS AIA CAD Layer Guidelines cover layer naming formats and lists for more than twenty layer types |
| Line types and weights | Linetype file, plot style table (CTB or STB), pen or lineweight chart | The NCS Plotting Guidelines include gray scale, color and line width tables |
| Text and dimensions | Text styles, dimension styles, annotation scales | Include custom fonts if you use any |
| Symbols and blocks | Block library, detail library, keynote file | Say which blocks are current |
| Xrefs and paths | How files reference each other, and folder structure | Say whether references are relative or absolute |
| File naming | Naming convention for drawings and returns | Include an example |
| Drafting conventions | Cross-referencing, callouts, abbreviations | The NCS Drafting Conventions and Terms and Abbreviations modules are a baseline |
The US National CAD Standard, version 7, published by the National Institute of Building Sciences, is the published baseline for most of these. If your firm follows it, say so. If you follow it with local changes, list the changes.
What Revit standards should you send?
For Revit work, the template is the standard. Send the template itself, plus the rules that live around it.
ARKANCE UK’s guide to Revit project templates lists what a good one contains: annotation families, title blocks for every sheet type, system and loadable families, pre-built views, schedules and sheets, view templates, materials and line styles, object styles and line weights, filters and placeholder links, and project browser organization (ARKANCE UK Community, February 2025). Use that list as a checklist for your own.
Then add what a template does not carry:
- The Revit version. Say which release the project is in, and whether the partner may upgrade a file.
- Worksets and naming. How worksets are named and who owns what, if you use them.
- Linked models. Which models are linked, where they live, and how often they update.
- Coordinates. Which file holds the shared coordinates. An AUGI article on shared coordinates recommends deciding early, and hosting the coordinate system in one master Revit file that the other files reference (AUGI).
- Families in use. Any that are not in the template, and how new ones should be built and named.
- Sheet and view naming. How the project browser should be organized.
What else belongs in the week-one pack?
Standards are half of it. The rest is what the partner draws from, and the rules for working with you.
| Part | Send | Why |
|---|---|---|
| Files and sheet list | Current drawings or model; the sheets in scope; the sheets out of scope | Defines the job |
| Source of truth | Which file and version is current, and who updates it | Stops work on stale files |
| Consultant backgrounds | Structural, civil and MEP files with dates; coordinate information | Backgrounds drive coordination |
| Jurisdiction notes | Permit checklist, code edition, prior reviewer comments | Shapes the sheets, not the decisions |
| Markups | Numbered, dated, one instruction each | Turns instructions into revisions |
| People and timing | Named contact on each side; dates for first set, your review and issue | Sets response times |
| Rules | Flag unclear items, do not resolve them; nothing changes unmarked | Keeps decisions with you |
| Return format | File formats and naming for what comes back | Avoids rework |
Skyline’s construction documents page lists the inputs it works from: current drawings or model, the required sheet list or milestone, CAD and BIM standards, consultant backgrounds, and review and issue dates. The redline conversion page adds hand-marked redlines, PDF and DWG markups, field dimensions and point clouds. Both are good starting lists for your own pack.
What if your standards are not written down?
Most small firms are in this position. You can still hand off in a week.
- Send a model sheet. One finished sheet that shows how you want a plan, a section and a schedule to look. A drafter can match a picture faster than a paragraph.
- Send your template. Even a messy one. It carries more standard than you know.
- Write the ten rules that matter. Title block, sheet numbers, text height, line weights, layer names, file names, and so on. One page is enough.
- Adopt a baseline for the rest. The National CAD Standard gives both sides a shared reference for layers, sheets and conventions.
- Ask the partner to play it back. Have them tell you what standard they think they are drawing to, in writing. Correct it before drawing starts.
Example (illustrative). An invented scenario, not a client project. A firm sends PDF markups and the DWG files, and nothing else. The partner draws to what it can see. The returned sheets have the right content and the wrong line weights, because the firm’s plot style table stayed in the office. The fix is a single file. But the set has to be re-plotted and re-checked, and the first review turns into a review of formatting instead of content.
What can go wrong with a standards handoff?
Five things, in rough order of how often they cost time.
- Missing support files. Fonts, plot styles, xrefs and blocks that stayed on your server.
- Stale files. No one said which version was current.
- Coordinates that do not line up. Models and CAD files drifting apart because no one owned the coordinate system.
- Assumed standards. “We just do it the usual way.”
- Old consultant backgrounds. Drawings coordinated against last month’s structure.
If you want to check the result as well, the trial-sheet checklist gives you a scorecard for the first set. And the twelve questions to ask a drafting partner covers what to settle before you send anything.
Send the pack, then one drawing set
If you would rather see how this works than describe it, you can request a scope review: send one drawing set, your standards and a note on what you would keep in your own office. Skyline drafts to your standards in AutoCAD, Civil 3D or Revit, and leaves design decisions, code determinations and seals with your licensed team.
