Most outsourcing stories that go badly start the same way. A set comes back wrong, and the drafter did exactly what the markup said. The markup was the problem.

If you outsource architectural drafting, hand off work that follows a written standard and has one correct answer: redline-to-CAD conversion, sheet production from your design files, schedules, and permit-comment revisions. Keep design decisions, code determinations, field verification and anything you seal. Licensing rules differ by state, so check your board’s.

That is the whole idea. The rest of this page shows how to draw the line on your own projects, who stays responsible when someone else does the drawing, and what to send in week one so the first set does not come back with the same mistake on every sheet.

It is written for principals and project architects at US firms that have more drawing work than drafters and are deciding whether to send some of it out.

What can you safely hand off when you outsource architectural drafting?

Try one test. Can you write down the right answer before the work starts? If you can, a drafter can produce it. If the answer depends on a judgment you have not made yet, the drafter will make it for you, quietly. That is where the trouble starts.

Here is how the common tasks sort out.

The rule of thumb is short. A drafter can draw a decision. A drafter should not make one.

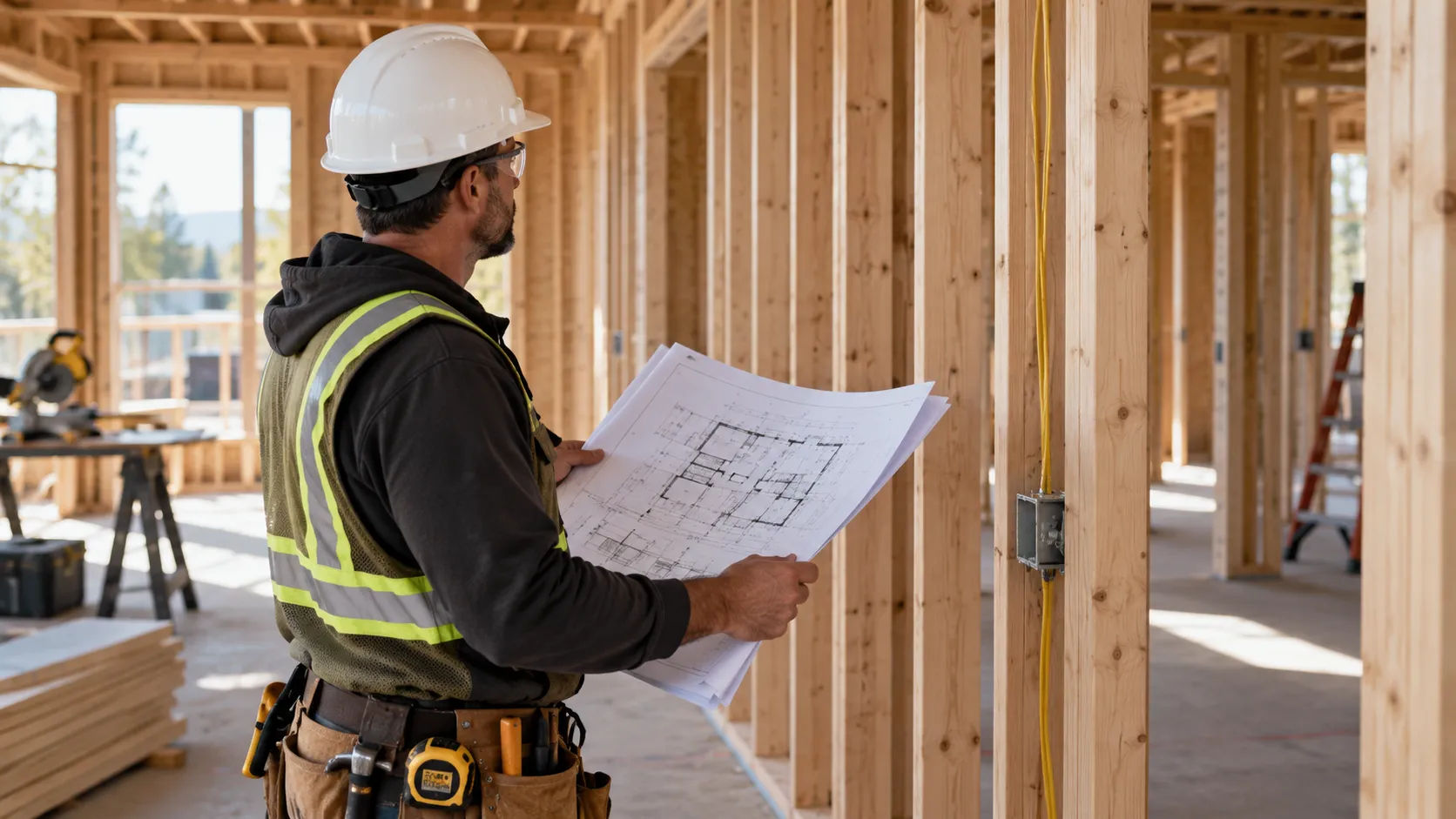

From the construction side, the reason is plain. Every guess on a drawing is a question waiting to be asked in the field. Skyline’s About page says its production team is led by NASCLA-certified general contractors and civil engineering graduates, and that lens is why the split above cares more about who decided than who drew. Where the decision was made in your office, the sheet tends to hold up on site. Where it was guessed in production, someone will send an RFI.

Who is responsible when someone else draws your sheets?

You are. That does not change when the drawing hours move to another office.

NCARB’s Model Law and Model Regulations, a model that state boards can adopt, are built around “responsible control.” In short, it means ultimate authority over the design and technical decisions, plus the knowledge and ability to oversee, delegate and integrate them. Documents prepared by people working under your responsible control can carry your seal. The regulations also expect you to keep records that show how far your review went.

One risk advisor’s summary of these rules makes a point that surprises people. Reviewing or correcting drawings after they are finished is not the same as controlling them while they are prepared (Cavignac). So the work of control happens before drafting starts: you set the scope, the standards and the open decisions, and you keep a record of it.

States adopt their own versions of these rules, and the details differ. Check your board’s rules and talk to your insurer before you commit a project to an outside team.

There is a second boundary, and it sits with the partner. Skyline is not a licensed architecture or engineering firm and does not stamp anything. Its professional services disclaimer says seals, engineering calculations, code review and permit sign-off stay with the client’s registered architects and licensed engineers. A good partner tells you that up front. If one doesn’t, ask. The full picture is in Who Stamps the Drawings?

What should you send in the first week?

Most first-set problems trace back to what was missing at the start, not to the drafting. Send these seven things.

• Your standards. Title blocks, layer or Revit standards, naming, sheet numbering, line weights. If nothing is written down, the US National CAD Standard from the National Institute of Building Sciences is a published baseline, and its AIA CAD Layer Guidelines give both sides one set of layer names to point to.
• The drawings or model. Current files, and which sheets are in scope.
• A sheet list and milestones. What is due, when you review it, when it is issued.
• Consultant backgrounds. Structural, civil and MEP files, with dates.
• Jurisdiction notes. The permit checklist, the code edition, anything a plan reviewer flagged before.
• Markups. Scanned or PDF, numbered, dated, one instruction per markup.
• A named person who answers questions, and how fast.

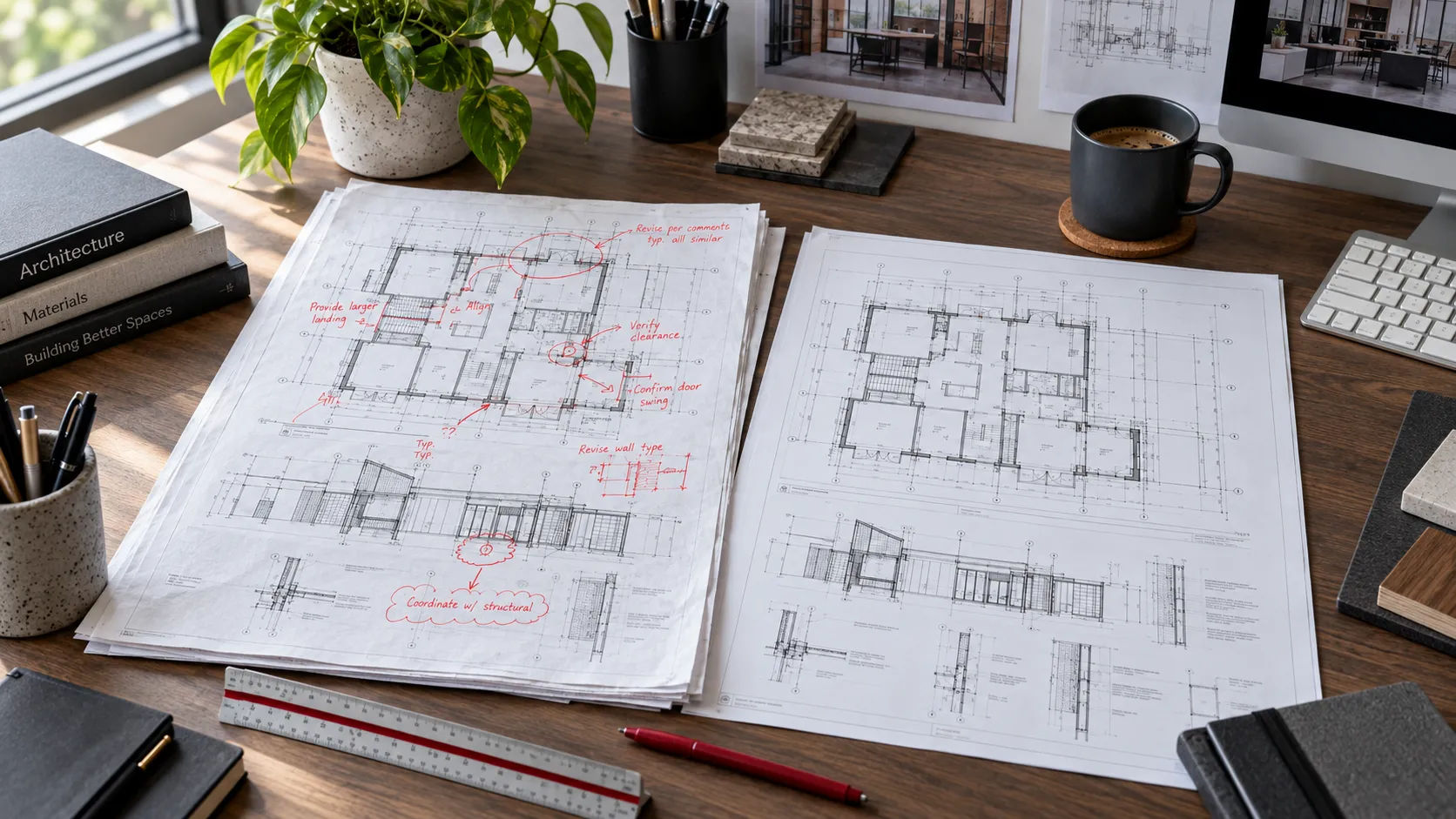

Then look at how the partner works with it. Skyline’s published redline-to-CAD process is a fair picture of what to expect from a careful one. It sets source control first: the approved set, units, layers, naming and revision rules. It reads the markups and flags gaps rather than assuming. It converts the changes while keeping your standards, runs a cross-discipline check, and releases the set with a revision history. The construction documents service starts the same way, with scope and standards alignment before any sheet is drawn.

You can also put the boundaries in writing. Here is a handoff note you can copy and adapt.

Example (illustrative): a permit comment letter

This scenario is invented to show the split. It is not a client project.

A small firm has a three-story apartment building in plan check. The reviewer returns a comment letter. The project architect answers each comment in a log: revise the shaft wall on the A-301 section to show the rating, add the accessible route dimension at the unit entry, and so on. Those answers are decisions, and they stay in the office.

The drafting partner gets the log, the model, the standards and a due date. It updates the sheets, clouds each change and returns a revision log. The architect checks the clouded items against the log, not the whole set.

Now the version that goes wrong. The architect forwards the raw comment letter and asks the partner to “address the comments.” Every comment that needs a decision gets one, from someone who does not hold the license. Same drafter, same hours, different outcome. The difference was the log.

What can go wrong when you outsource drafting, and what does it cost?

A few things, and most are avoidable.

• Vague markups. The drafter guesses. Fix it with one instruction per markup and the “flag, do not resolve” rule.
• Standards that live in one person’s head. The first set comes back in a format nobody agreed on. Write them down, or point to a published baseline.
• A design that is still moving. Hand work off when a markup is an instruction, not a question. If schematic design changes daily, keep it in the office.
• Slow answers. A question sent at 5 p.m. may wait until morning, depending on where the partner works. Name one person on your side and agree on response times.
• Confidentiality. Get an NDA in place before files change hands.

Cost is a separate question because it depends on the model: per sheet, per hour, or a dedicated team. Each suits a different workload. The numbers are in what outsourced drafting costs. Whatever the model, ask for a written scope with sheet counts and revision rounds. An hourly quote with no scope hides the real number.

And when should you not outsource at all? When you cannot yet say what finished looks like. Fix that first. A partner cannot hit a target you have not set.

Send one set and see

If you have a backlog and you are not sure what to hand off, you can request a scope review. Send one drawing set, your standards and a note on what you would keep in your own office. Skyline drafts to your standards in AutoCAD, Civil 3D or Revit, and leaves design decisions, code determinations and seals with your licensed team.

Sources

• NCARB Model Law and Model Regulations, National Council of Architectural Registration Boards
• United States National CAD Standard, Version 7, National Institute of Building Sciences
• Signing, Stamping and Sealing Others’ Designs, Cavignac (published 2021, updated 2023)
